What is a 45 Degree Elbow?

A 45 Degree Elbow is a type of pipe fitting designed to alter the flow direction by 45 degrees. This fitting helps maintain flow efficiency and minimizes pressure loss, which can otherwise lead to turbulence and reduced system performance.

Explore the Benefits of Using 45 Degree Elbows in Construction Projects

Advantages of Using 45 Degree Elbows in Construction Projects

  • Flexibility in Design
  • Facilitates Easy Installation
  • Improves Water Flow Dynamics
  • Offers Cost Efficiency
  • Enhances Overall Aesthetics
  • Boosts Flow Efficiency
  • Reduces Pressure Drop
  • Ensures Smooth Fluid Movement
  • Minimizes Erosion Effects
  • Improves System Performance
Advantages of Using 45 Degree Elbows in Construction Projects

Refer to the Dimensions of 45 Degree Pipe Elbows

The dimensions of 45 degree elbows play a critical role in ensuring seamless connections within a piping system. Matching the fitting size to the pipe diameter is essential to prevent leaks, structural issues, or inefficiencies.

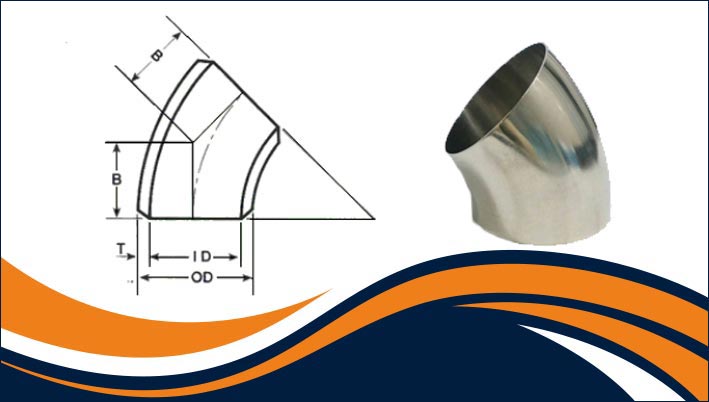

45 Degree Elbow Dimensions

45 Degree Elbow Dimensions

Nominal Pipe Size (NPS) Outer Diameter (OD) at Bevel Center to End
45 degree B
1/2 21.3 15.7
1 33.4 22.4
1-1/2 48.3 28.4
2 60.3 35.1
3 88.9 50.8
4 114.3 63.5
6 168.3 95.2
10 273.1 158.8
14 355.6 222.2
18 457.2 285.8
22 558.8 342.9
26 660.4 406.4
30 762 469.9
34 863.6 533.4
38 965.2 599.9
42 1066.8 660.4
46 1168.4 726.9
52 1320.8 –
56 1422.4 883.8
66 1676.4 1041.6
72 1829 1137
80 2032 1263

View the Weight Chart for 45 Degree Long Radius Elbows

Knowing the weight of 45 degree long radius elbows is important for safety during handling and installation. This information directly impacts the overall cost of the piping system.

45 Degree Street Elbow Weight Chart

NPS in inches Schedule XXS (kg) Schedule 160 (kg) Schedule XS (kg) Schedule STD (kg)
1/2 – – – .04
3/4 .08 – .07 .04
1 .18 .17 .13 .11
1 1/4 .25 .23 .20 .15
1 1/2 .52 .35 .27 .21
2 .96 .79 .47 .35
2 1/2 1.7 1.35 .86 .75
3 2.6 2.0 1.39 1.01
3 1/2 3.9 – 2.14 1.42
4 4.8 4.3 2.65 1.91
5 8.6 7.65 4.65 3.26
6 14.4 13.5 7.5 5.18
8 27 29 15 10
10 – 61 24 18
12 – 104 33 27
14 – 125 43 33
16 – 187 59 46
18 – – 77 57
20 – – 92 70
24 – – 133 100
26 – – 164 124
30 – – 214 165
36 – – 318 239
42 – – 428 320
45 degree elbows come in various materials including stainless steel, carbon steel, and nickel alloys.

Each material has unique properties that make it suitable for specific applications. Below is a table of materials, standards, and grades that can help you choose the right option for your needs.

Materials and Grades for 3 Inch 45 Degree Elbows

Material Standards and Grades
Carbon Steel
  • ASTM A105
  • ASTM A694
  • ASTM A350 LF2
  • DIN 1.0619
  • DIN 1.0402
Incoloy
  • 825
  • 800 / 800H / 800HT
45 Degree Stainless Steel Elbow
  • ASTM A403 WP304 / F304L
  • F316 / F316L
  • F317 / 317L
  • F321 / 321H
  • F347
Copper Nickel 45 Degree Angle Elbow
  • C71500 – 70/30
  • C70600 – 90/10
Alloy Steel 45 Degree Pipe Elbow
  • ASTM A182 F5
  • F11
  • F9
  • F91
  • F22
Titanium 45 Degree Black Elbow
  • Gr 1
  • Gr 2
  • Gr 4
  • Gr 5
  • Gr 7
Inconel 45 Degree Long Radius Pipe Elbow
  • 600
  • 625
  • 601
  • X750
  • 718
Hastelloy 45 Degree LR Pipe Elbow
  • C22
  • C4
  • C276
  • X
  • B2
  • B3
Super Duplex
  • S32750
  • S32760
Nickel Alloy
  • 200
  • 201
45 Degree Aluminum Elbow
  • 6061
  • 6082
  • 6063
  • 5083
  • 1060
  • 1050
Duplex
  • S32205
  • S31803

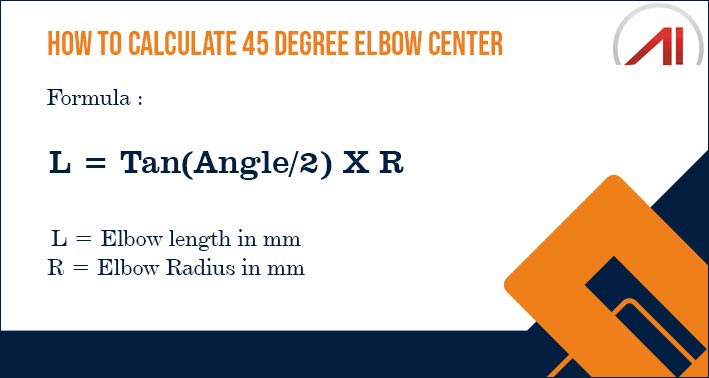

Calculate the Center of a 45 Degree Elbow

Calculate the Center of a 45 Degree Elbow

Pressure Ratings for 45 Degree Elbows

Temperature (°C) Class (lbs)
150 300
°C °F 2 1/2 – 3 inch. 1 1/4 – 2 inch. 1/4 – 1 inch.
-29 to 66 -20 to 150 300 1000 1500 2000
93 200 265 910 1350 1785
121 250 225 825 1200 1575
149 300 185 735 1050 1360
177 350 150 650 900 1150
204 400 – 560 750 935
232 450 – 475 600 725
260 500 – 385 450 510
288 550 – 300 300 300

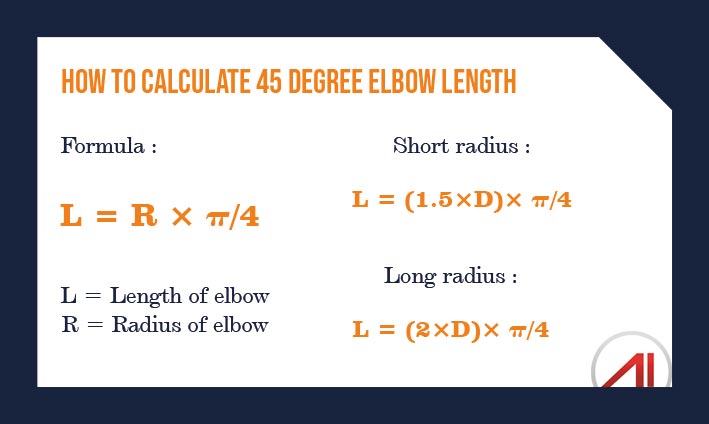

How to Calculate the Length of a 45 Degree Elbow

How to Calculate the Length of a 45 Degree Elbow

45 degree black elbows are manufactured according to the ASME B16.9 standard.

The ASME B16.9 standard is an industrial butt-weld fitting standard established by the American Society of Mechanical Engineers. It covers aspects like fitting sizes, tolerances, pressure ratings, materials, surface finishes, testing, etc.

Features of 45 Degree Stainless Steel Elbows

  • Smooth Interior Surface
  • Resistant to Mechanical Stress and High Pressure
  • Longevity
  • Exceptional Performance
  • Easy Installation
  • Heat Tolerance

Disadvantages of 45 Degree Pipe Elbows

  • Pressure Loss
  • Flow Disruption
  • Space Requirements
  • Higher Cost Than Straight Sections
  • Requires Regular Maintenance
  • Limited for Sharp Turns
  • Increased Friction
Disadvantages of 45 Degree Pipe Elbows

Applications of 45 Degree Long Radius Elbows

Applications of 45 Degree Long Radius Elbows
  • Water supply systems
  • Chemical industrial pipelines
  • Food processing pipelines
  • Air conditioning facilities
  • Electronics industry
  • Solar energy systems
  • Agricultural irrigation
  • HVAC systems
  • Drainage systems
  • Gas distribution networks
